Diesel Engine Dyno

the portable

DT Series diesel engine water brake dynamometer

The DT Series diesel engine dyno is designed to be quickly and easily fitted to an engine mounted on a fixed base or mobile engine stand. When combined with a Go Power instrumentation package, it allows precise and repeatable testing results with minimal set up time.

The DT1000 diesel engine dyno is designed for use with light to medium duty diesel engines at speeds up to 3500 rpm continuous and 4000 rpm intermittently. The power absorption profile is uniquely suited for testing piston-type aircraft engines such as Lycoming and Teledyne Continental.

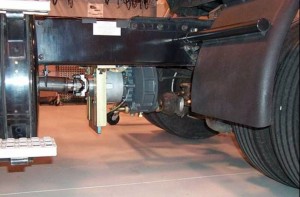

The larger DT-range (DT2000/DT3000) is used with industrial diesel engines at speeds up to 5000 rpm. We manufacture many dynamometer stands to suit practically any test setup. When a chassis dynamometer is not practical or available, the DT-series dynamometers can be fitted with our IFA-D2000 in-frame adapter (see photo). This device can be mounted within the driveline of heavy-duty trucks for in-vehicle engine testing.

go power IN FRAME ADAPTER

  • Low maintenance
  • Portable, quick set up
  • Safe, no driveshaft required
  • Includes strain gauge load cell, speed sensor, inlet/outlet hoses, mechanical seal feed line assembly, splined interface stub shaft or power coupling, engine flywheel housing spacer w/mounting hardware; Note: Requires flywheel adapter kit or  adapter for engine interface.
  • Bi-directional, reliable, and cost-effective
  • Long service-life cycle
  • Refurbishments, spare parts available
  • Built-in comprehensive torsional dampening system

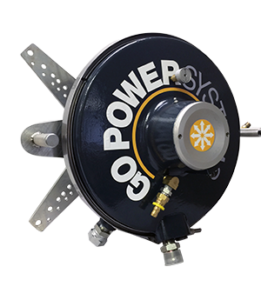

go power Dt1000 diesel engine dyno

More detail including water requirements  ⇓

The DT1000 diesel engine dynamometer is designed for endurance and/or power testing of light to medium duty diesel engines and other high torque applications. It is designed to be quickly and easily fitted to an engine mounted on a fixed base or mobile engine stand.

The DT1000 dyno is compatible with our complete line of digital consoles and state of the art control systems. This unique modular design provides maximum flexibility to expand to your system as your testing requirements grow.

As with all the Go Power dynos, the DT1000 dyno can be purchased as an individual unit, or as part of a complete test package:

DT1000 ENGINE DYNAMOMETER
SPECIFICATIONS
  • Max Power 500 Bhp / 375 kW
  • Max Torque 1360 N-m / 1000 lbft
  • Max Speed 4,000 rpm
  •

The EDP1000 Essential Dynamometer System Package is a portable diesel engine testing package consisting of:

  • DT1000 diesel engine portable dynamometer
  •  Torque calibration arm assembly (metric or imperial, weights not included)
  •  Manual load control valve set
  • DC200 digital display console. Read more about the DC200 here.
  • Interface harness kit (speed and torque)

The EDP1000 is perfect for the diesel engine tester that does not require a data acquisition system but is looking to simply get readings on RPM, Speed and Torque. If an actual data acquisition system is desired, the ADP package would be appropriate.

The ADP1000 Advanced Dynamometer Package includes all of the components listed in the EDP package, except the GPS6000 Data Acquisition System is supplied in place of the DC200 Display Console.

  • DT1000 diesel engine portable dynamometer
  • Torque calibration arm assembly (metric or imperial, weights not included)
  • Manual load control valve set
  • GPS6000 Digital Acquisition System, learn more about the GPS6000 here.
  • Interface harness kit

All the components in the ADP Package, substituting a servo load control valve in place of a manual load control valve.

  • Low maintenance
  • Portable, quick set up
  • Safe, no driveshaft required
  • Includes strain gauge load cell, speed sensor, inlet/outlet hoses, mechanical seal feed line assembly, splined interface stub shaft, engine flywheel housing spacer w/mounting hardware; Note: Requires flywheel adapter kit or adapter for engine interface.
  • Bi-directional, reliable, and cost-effective
  • Long service-life cycle
  • Refurbishments, spare parts available
  • Built-in comprehensive torsional dampening system

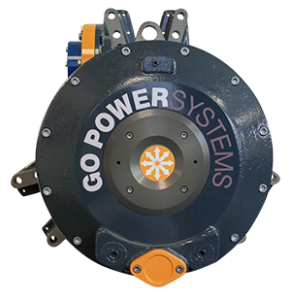

go power dt2000 diesel engine dynamometer
DT2000 ENGINE DYNAMOMETER
SPECIFICATIONS
  • Max Power 800 Bhp / 600 kW
  • Max Torque 2700 N-m / 2000 lbft
  • Max Speed 5,000 rpm
  •

More detail including water requirements  ⇓

The DT2000 diesel engine dynamometer is designed for endurance and/or power testing of medium to heavy-duty industrial diesel engines and other high torque applications. It is designed to be quickly and easily fitted to an engine mounted on a fixed base or mobile engine stand.

The DT2000 dyno is compatible with our complete line of digital consoles and state of the art control systems. This unique modular design provides maximum flexibility to expand to your system as your testing requirements grow.

As with all the Go Power dynos, the DT2000 dyno can be purchased as an individual unit, or as part of a complete test package:

The EDP2000 Essential Dynamometer System Package is a portable diesel engine testing package consisting of:

  • DT2000 diesel engine portable dynamometer
  •  Torque calibration arm assembly (metric or imperial, weights not included)
  •  Manual load control valve set
  • DC200 digital display console. Read more about the DC200 here.
  • Interface harness kit (speed and torque)

The EDP2000 is perfect for the diesel engine tester that does not require a data acquisition system but is looking to simply get readings on RPM, Speed and Torque. If an actual data acquisition system is desired, the ADP package would be appropriate.

The ADP2000 Advanced Dynamometer Package includes all of the components listed in the EDP package, except the GPS6000 Data Acquisition System is supplied in place of the DC200 Display Console.

  • DT2000 diesel engine portable dynamometer
  • Torque calibration arm assembly (metric or imperial, weights not included)
  • Manual load control valve set
  • GPS6000 Digital Acquisition System, read more about the GPS6000 here.
  • Interface harness kit

All the components in the ADP Package, substituting a servo load control valve in place of a manual load control valve.

  • Low maintenance
  • Portable, quick set up
  • Safe, no driveshaft required
  • Includes strain gauge load cell, speed sensor, inlet/outlet hoses, mechanical seal feed line assembly, splined interface stub shaft, engine flywheel housing spacer w/mounting hardware; Note: Requires flywheel adapter kit or adapter for engine interface.
  • Bi-directional, reliable, and cost-effective
  • Long service-life cycle
  • Refurbishments, spare parts available
  • Built-in comprehensive torsional dampening system

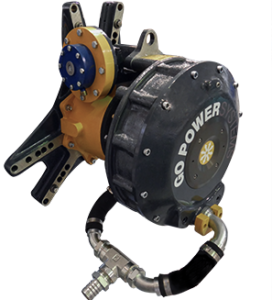

dt3000 gop diesel engine dyno
DT3000 ENGINE DYNAMOMETER
SPECIFICATIONS
  • Max Power 1,500 Bhp / 1,120 kW
  • Max Torque 3,500 N-m / 4,745 lbft
  • Max Speed 5,000 rpm
  •

More detail including water requirements  ⇓

The DT3000 diesel engine dynamometer is designed for endurance and/or power testing of  heavy-duty industrial diesel engines and other high torque applications. It is designed to be quickly and easily fitted to an engine mounted on a fixed base or mobile engine stand.

The DT3000 dyno is compatible with our complete line of digital consoles and state of the art control systems. This unique modular design provides maximum flexibility to expand to your system as your testing requirements grow.

As with all the Go Power dynos, the DT3000 dyno can be purchased as an individual unit, or as part of a complete test package:

The EDP3000 Essential Dynamometer System Package is a portable diesel engine testing package consisting of:

  • DT3000 diesel engine portable dynamometer
  •  Torque calibration arm assembly (metric or imperial, weights not included)
  •  Manual load control valve set
  • DC200 digital display console. Read more about the DC200 here.
  • Interface harness kit (speed and torque)

The EDP8000 is perfect for the diesel engine tester that does not require a data acquisition system but is looking to simply get readings on RPM, Speed and Torque. If an actual data acquisition system is desired, the ADP package would be appropriate.

The ADP3000 Advanced Dynamometer Package includes all of the components listed in the EDP package, except the GPS6000 Data Acquisition System is supplied in place of the DC200 Display Console.

  • DT3000 diesel engine portable dynamometer
  • Torque calibration arm assembly (metric or imperial, weights not included)
  • Manual load control valve set
  • GPS6000 Digital Acquisition System, read more about the GPS6000 here.
  • Interface harness kit

All the components in the ADP Package, substituting a servo load control valve in place of a manual load control valve.

CAUTION

The dynamometer may be operated continuously within the duty curve; however, hydraulic machines are regularly used for short-term performance testing at considerably higher power values (torque levels remain with the maximum published level). This results in rapid heating of the water within the machine which may result in localized vaporization and potential loss of control. Go Power Systems accepts no responsibility for any resulting loss due to operation outside the published performance characteristics of the individual dynamometer.

MADE IN USA
