The DA Series consists of the DA-300/500, DA-302/502, DA-312/512, and the DA-316/516. NOTE: The difference between the D and the DA designations is that the DA models have a console with gauges. These models CANNOT be upgraded to strain gauge units as parts are no longer available.

Some of these units are serviceable by Go Power Systems, and a few parts may be manufactured for the support of these models. Some parts on earlier models cannot be replaced, such as the shaft/rotor assembly or stators because they have not been in production for many years. Evaluating the internal wear will dictate if your brake can be serviced. To obtain assistance, first accurately identify your model.

The DA-300/500 and DA-302/502 are easily identified by the input shaft that is directly splined for a clutch disc interface method. This model does not have a removable input shaft; rather, the shaft rotor assembly itself has a splined interfacing end. Many of these models were manufactured with a GM or VW matching splined shaft. Parts are no longer available for these models.

The only hydraulic fluid Go Power Systems recommends is Dow Corning PMX-200 silicone fluid. Any other fluid, such as ATF, may contain detergents that chemically attack the diaphragms and cause leaks or premature failure. Also, to avoid the possibility of false torque readings, we strongly advise only the use of Dow Corning PMX-200. We no longer carry silicone fluid or the diaphragms.

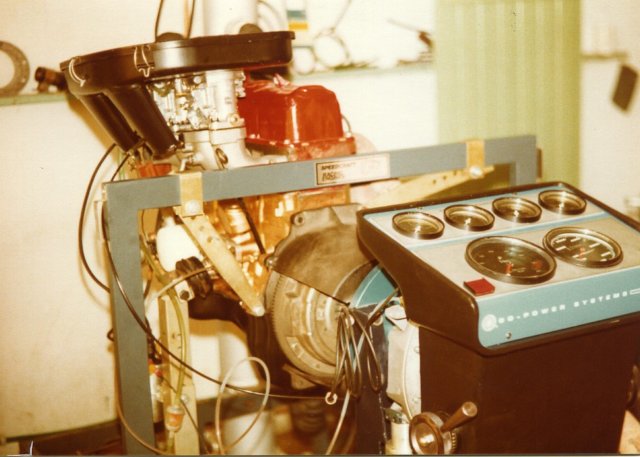

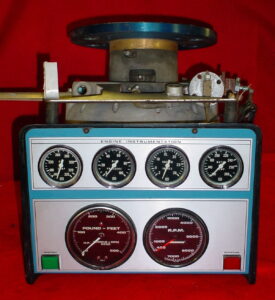

The DA-312/512 (or D-312/512) can be identified by checking the connection method of the removable hub adapter at the input end. If you purchased the dynamometer and it came with a mounted, splined input shaft adapter, remove the mounting bolts and look at the end of the shaft/input shaft hub assembly. If the main shaft has short male splines and the shaft hub assembly has corresponding female splines and a C-clip retainer, it is a model DA-312/512.

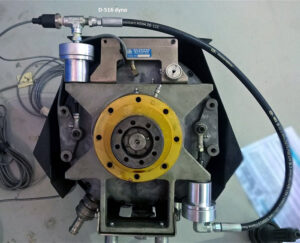

The DA-316/516 (or D-316/516) is virtually the same as the D-312/512, but has a smooth bore hub adapter keyed onto the main shaft.

→ We no longer supply the silicone hydraulic fluid (as discussed above), and the overhaul parts kit is also no longer available.

All of the above models are single-trunnion units with alloyed aluminum construction. If you have any questions, contact us for assistance.
